U-Medico Uses FlowCam to Assess Drug Stability Using Tapered Needles vs. Cylindrical Needles

U-Medico Uses FlowCam to Assess Drug Stability Using Tapered Needles vs. Cylindrical Needles

Injectable biopharmaceuticals, particularly prefilled syringes (PFS), come with risks related to the force of injection, such as patient pain and anxiety. The injection force can often be especially high with PFSs, due to the high viscosity of the contained substances.

"In clinical practice, injection pressure is commonly estimated by the injection force, which is a measure of effort required by the user during depression of the plunger on a delivery device. Previous studies have suggested that low exerted injection force was consistent with improved patient convenience and ease of injection."

tapered needle schematicTerumo Corporation has recently developed a tapered injection needle in the hopes that it will reduce the force of injection and improve the patient experience.

Pictured above:  Schematic representation of the 29G TNN tapered needle

The researchers at U-Medico measured the injection forces in three kinds of needles, including the new tapered needle, a thin-walled needle, and a traditional cylindrical needle. They found that the injection forces were lower with the tapered needle than with the thin-walled needle in some cases, and the same in others, and that they were lower than with the traditional needle in every case.

It was also important to U-Medico to ensure that no changes occurred in the stability of the drugs themselves due to the use of the tapered needle. They used the FlowCam in conjunction with size exclusion chromatography to detect the presence of protein aggregates and/or extrinsic particles present in the formulations before and after injection with each needle. They did not find a significant difference in aggregate concentration or other particles either after injection or between each of the needles tested. This suggests that neither choice of needle, nor force of injection, significantly affects drug stability.U-Medico graph - FlowCam analysis of drug stability with different injection needles

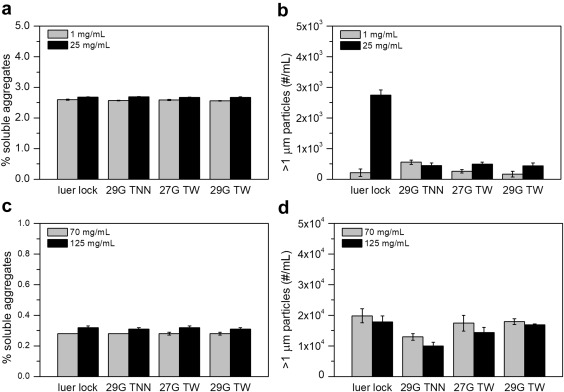

Pictured above: "Effect of needle geometry on stability of pharmaceutical proteins. Concentrations of aggregates and micron-size particles in etanercept at concentrations of 1 mg/mL (gray) and 25 mg/mL (black) (a and b) and omalizumab at concentrations of 70 mg/mL (gray) and 125 mg/mL (black) (c and d) were measured after injection using 29G TNN, 27G TW, 29G TW, and luer lock PFSs. Data represent the mean of triplicate measurements, with error bars corresponding to the standard error of the mean."

Elena Krayukhina, Ayano Fukuhara, Susumu Uchiyama
Research Department, U-Medico Inc., 2-1 Yamadaoka, Suita, Osaka 565-0871, Japan

Read the full paper at the Journal of Pharmaceutical Sciences.
